Description

- Designed for high heat load applications at XFELs

- Different use cases:

•     Diamond zone plates

•     Diamond gratings for spectral monitoring

•     Split-and-delay schemes for ultra-fast pump-probe experiments

- Diamond zone plates allowing for peak power densities in the focal spot of 4x1017 W/cm2

- Combinable with the Ir-line-doubling technique

Example

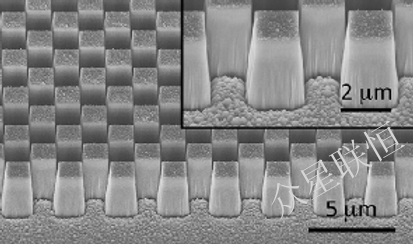

                        Diamond checkerboard grating

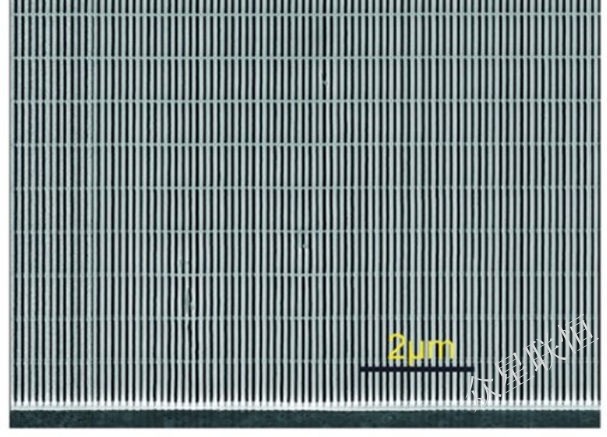

   Diamond grating (pitch:150 nm, height: 1200 nm)

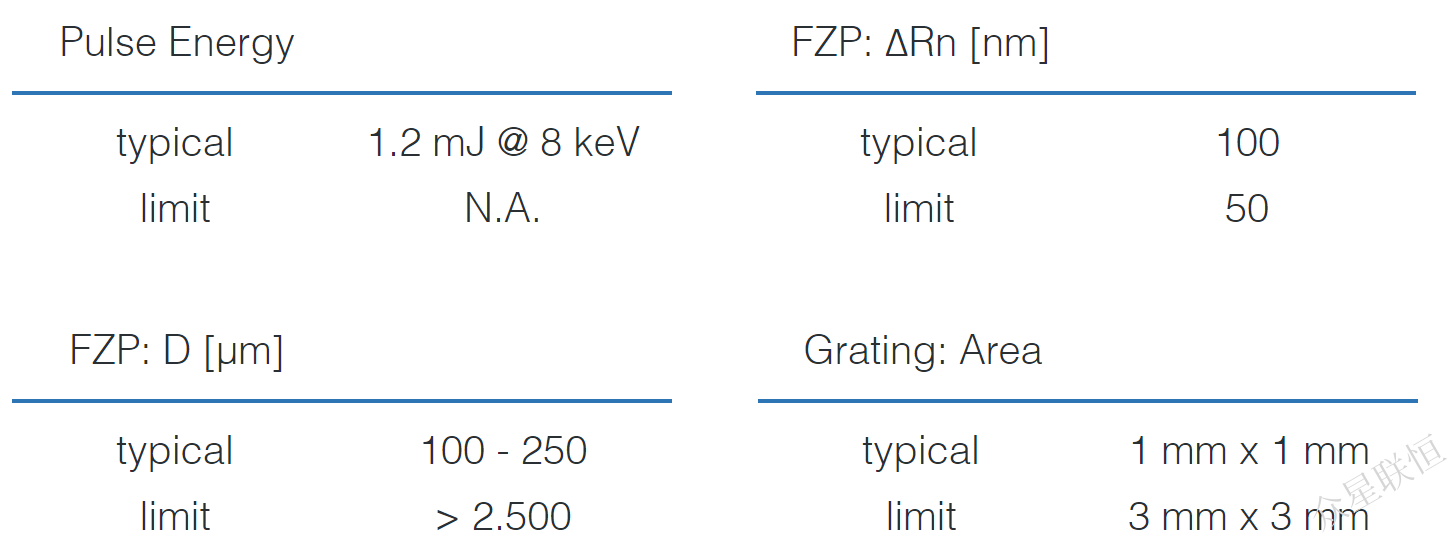

Specifications
